Performance parameter
| Entrance and exit size (inch) | 3 | |||
| Working pressure (Mpa) | 0.5 | |||
| Applicable temperature (℃) | ≤80 | |||
| Applicable medium | food, industrial grease, non-hazardous liquid chemicals | |||
| Connection method | Heat sealing flange | |||
| Material | Valve body | PP | High rigidity, corrosion resistance | non-toxic, meet food-grade requirements |
| Ball core | PP | undeformable and corrosion resistant | ||
| handle | PP | high rigidity and corrosion resistance | ||
| Upper cover | PP | high rigidity and corrosion resistance | ||
| Sealing ring | Oil-resistant and temperature-resistant material | |||
Packing: inner carton, outer wooden box or pallet.
Packing size: carton: 500*310*480mm, 16 pcs/carton; Wooden box size 1000*930*960mm, 12 cartons/box, 192 valves in total.
Weight/pc: 1250g
Features
1. The valve and the flange are integrated by injection molding, the tightness is more reliable, and the possibility of valve leakage is greatly reduced.
2. The sealing ring is made of silicone rubber material, which can be replaced with fluorine rubber, NBR and other materials according to customer requirement.

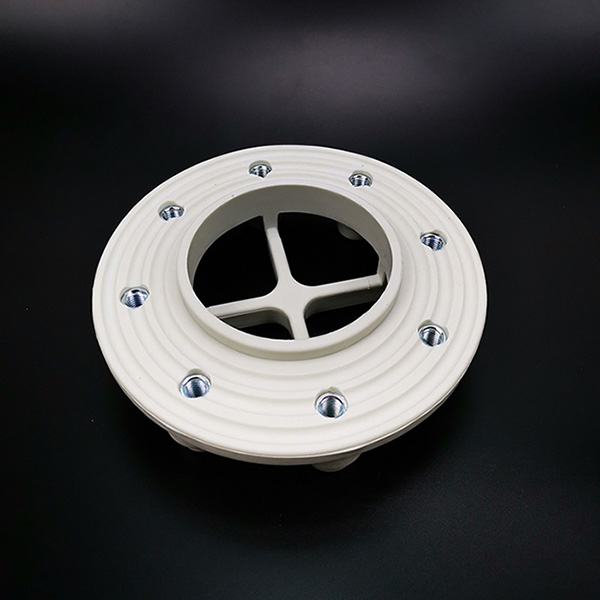

3. The flange adopts a cross-shaped structure, with high strength, large flow area, small flow resistance, and less residual liquid in the liquid bag.
4. The valve stem has self-locking function, easy to operate, safe and reliable.
