Description

Bronze angle valve is also called triangle valve, angle water valve. This is because the pipe is in a 90-degree corner shape, so it is called bronze angle valve and the knuckle valve.

Product Details

Bronze angle valve is also called triangle valve, angle water valve. This is because the pipe is in a 90-degree corner shape.

The valve body has inlet, water flow control mouth, outlet, three mouths in total, so it is called the triangle valve. Of course, It is continuously improved, although it is still with three mouths, but there are not angle valves. The bronze angle valve of the industry refers to the angle control valve except the body. The other structure is similar to the direct pass single seat regulating valve.

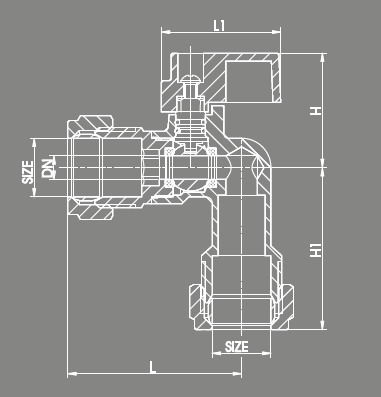

Our product is a special ball core structural angle valve for copper piping.

Copper products at both ends is equipped with a nut, nut internal circle in red copper material card, when installation, will first copper tube through the nut, the card trap on the copper tube, then screw nuts on the ontology of tight. As the nut is tightened, the nut will squeeze the clamp, which will act on the copper tube and tighten the copper tube. Because of the retainer ring material and the material of copper tube is the same, so can have very good sealing effect, this way of "hard seal" to avoid the "soft seal" damaged the disadvantages of the accessories, has "less vulnerable parts, sealing good, stable structure, long service life".

Product Advantageof Bronze Angle Vale:

1. The flow resistance is small, and the flow coefficient is larger than the single valve, which is equivalent to the flow coefficient of the two-seat valve.

2. The flow path is simple, the dead zone and the vortex area are small, and with the help of the scour of the medium itself, it can effectively prevent the media blockage, which means that it has better self-cleaning performance.

3. Suitable for high viscosity, suspended solids and granular fluids, or used for requiring rectangular piping.
