Description

This valve is Y type - filter - ball valve is convenient to clean and can easily remove the sewage outlet.

Product Details

Item no.: B1151

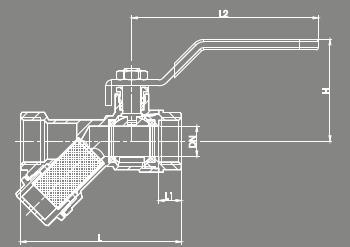

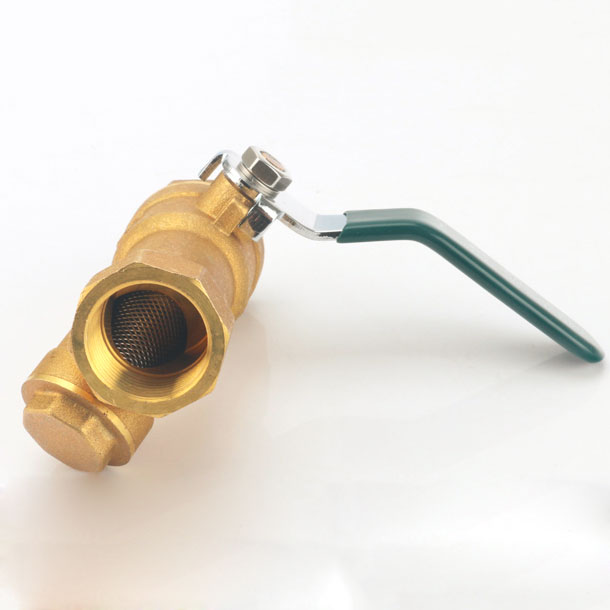

This valve is Y type - filter - ball valve.

The product advocates the service tenet of "invisible place, show you to get safe".

Product design idea: economic, practical, environmental protection, long service life, low failure rate and easy to replace.

Product material: HPB59-1

Surface treatment: primary color, fine sand (frosting treatment). The surface is made according to customer requirements with clear water indication arrow specifications and nominal pressure.

The product emphasizes high quality performance, the model design is concise to combine the function, the aesthetic and the environmental protection in one body, the precision work is to cast every detail.

It is convenient to clean and can easily remove the sewage outlet. The sealing washer of the sewage outlet is recycled by environmental-protection material, and the replacement is convenient. Stainless steel filter is made of high quality 304 S.S. material which is not rust, easy to clean, easy to install, easy to use mesh and easy to plug.

The stem seal structure adopts "gland" structure form with better seal, which can eliminate the valve stem out of leakage phenomenon.

The handle is made of fine steel and the mechanical properties are better. We can change the handle style according to the customer's requirement.

The product thread adopts the precision machining of NC machine which can ensure the precision and the maximum effective use length and make the valve connection more strengthened, moreover further increase the sealing performance.

Before the whole valve goes out of the factory, the blasting seal test will be conducted. The working medium of Y type strainer is water, oil, gas, etc. Working temperature - 10 ℃ or less t 120 ℃ or less; The nominal pressure is 2.5mpa, 2.0mpa and 1.6mpa respectively.

"Y Type Strainer" internal baffle is connected with this link through a hinge structure, which is free as a door on the tilted seat surface. In order to ensure that baffle can reach the seat to the appropriate location every time. it makes the baffle has enough open and closed space, and makes the baffle to be real and comprehensive engagement with the seat through the hinge structure design.

The baffle can be made entirely of metal, or it can be inlaid with sealing material on the metal, depending on the performance requirement.

When it is fully open, the fluid pressure is almost unimpeded, so the pressure to drop through the valve is relatively small.

It is suitable for large caliber occasions with low flow velocity and low flow, but it is not suitable for pulsating flow. Its sealing performance is less than the lift check valve.
