Description
Gas hose union ball valve made of forged brass, sand-blasted and chromed is used in the connection with the pipe and soft hose.
Product Details
Gas hose union ball valve made of forged brass, sand-blasted and chromed, to UNI CIG7141.
◆ Brass stem with double O-ring assembled from inside to avoid tampering, extraction or explosion, according to UNI 8858.
◆ Brass solid ball with cleaned and chromium plated surface.
◆ PTFE seats in accordance with EN331, designed with a 7 tightness angle.
◆ Level made of aluminium coated with yellow epoxy resin.
◆ Threads according to ISO7/1.

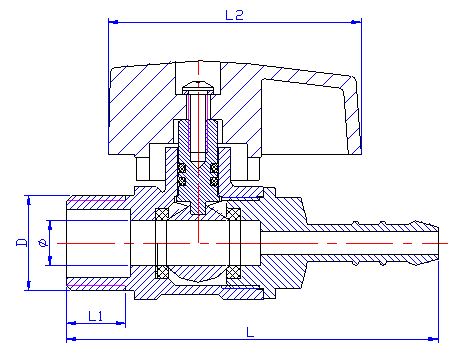

Art.1800 Straight ball bibcock 1/2F, with hose union, GASTRONG series; to UNI CIG7141-72. Yellow aluminium level.
| ART. NO. | DESCRIPTION | SIZE (D) | PN (bar) | STANDARD OF THREAD | Φ (mm) | L (mm) | L1 (mm) | L2 (mm) |
| ART.1800.009 | Straight ball valve F with hose union for gas, made of brass. | 1/2"x8 | 10 | ISO228-1 | 10 | 81.5 | 17 | 47 |
| ART.1800.014 | 1/2"x13 | 10 | ISO228-1 | 10 | 96 | 17 | 47 |

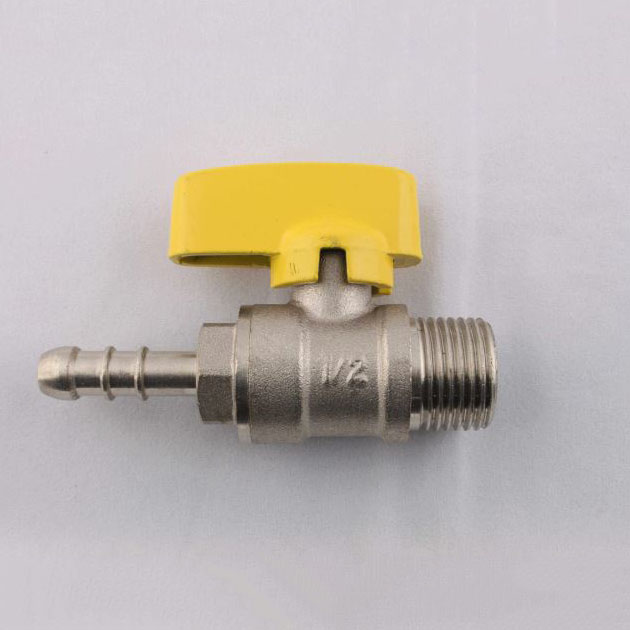

Art.1801 Straight ball bibcock 1/2M, with hose union, GASTRONG series; to UNI CIG7141-72. Yellow aluminium level.
| ART.1810 | ||||||||
| ART. NO. | DESCRIPTION | SIZE (D) | PN (bar) | STANDARD OF THREAD | Φ (mm) | L (mm) | L1 (mm) | L2 (mm) |
| ART.1810.015 | Straight ball valve F/F, with swivel end, made of brass. | 1/2"x1/2" | 10 | ISO228-1 | 10 | 75 | 17 | 47 |
| ART.1810.020 | 1/2"x3/4" | 10 | ISO228-1 | 10 | 81.4 | 17 | 47 | |

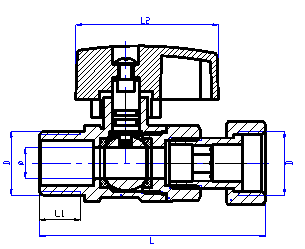

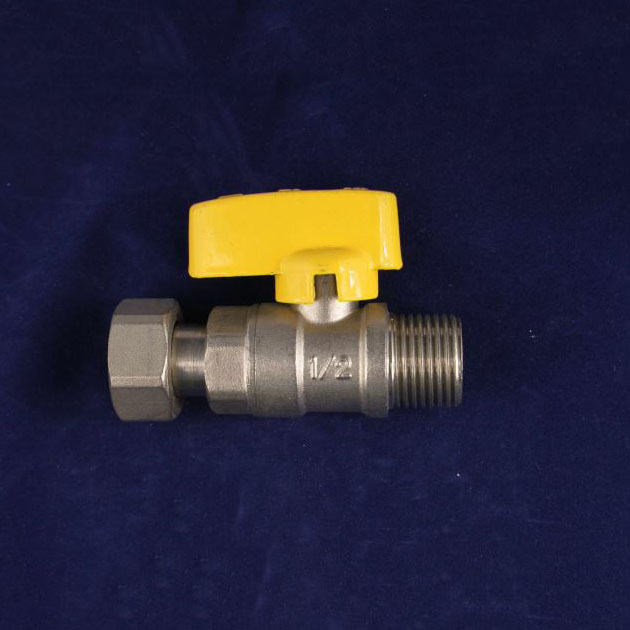

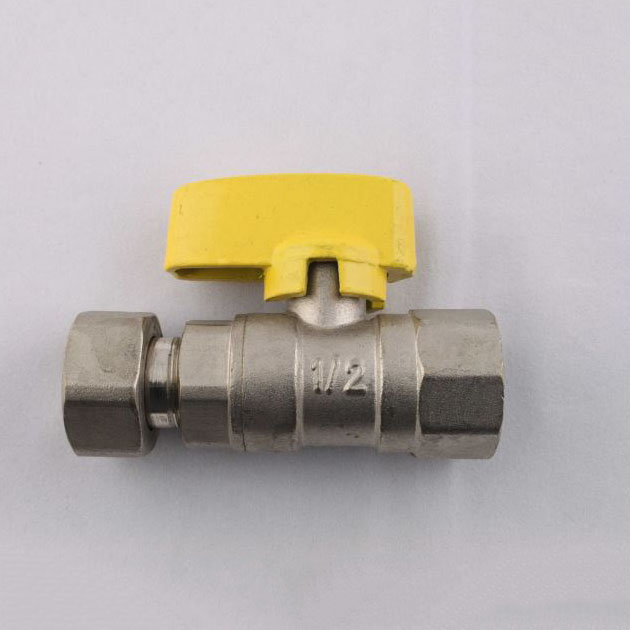

Art.1811: Straight ball bibcock F/F, swivel end, for water heaters, GASTRONG series; to UNICIG. Yellow aluminium lever.
| ART.1811 | ||||||||
| ART. NO. | DESCRIPTION | SIZE (D) | PN (bar) | STANDARD OF THREAD | Φ (mm) | L (mm) | L1 (mm) | L2 (mm) |
| ART.1811.015 | Straight ball valve M/F, with swivel end, made of brass. | 1/2"x1/2" | 10 | ISO228-1 | 10 | 74.5 | 13.5 | 47 |
| ART.1811.020 | 1/2"x3/4" | 10 | ISO228-1 | 10 | 80.9 | 13.5 | 47 | |

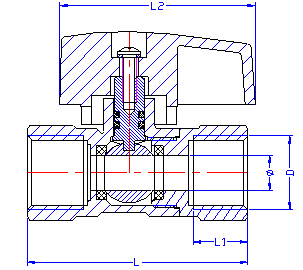

Art.1820: Straight ball bibcock F/F 1/2
| ART.1820 | ||||||||
| ART. NO. | DESCRIPTION | SIZE (D) | PN (bar) | STANDARD OF THREAD | Φ (mm) | L (mm) | L1 (mm) | L2 (mm) |
| ART.1820.015 | Straight ball valve for gas F/F, made of brass. | 1/2"x1/2" | 10 | ISO228-1 | 10 | 63 | 17 | 47 |
Art.1822: Straight ball bibcock F/F 1/2
| ART.1822 | ||||||||
| ART. NO. | DESCRIPTION | SIZE (D) | PN (bar) | STANDARD OF THREAD | Φ (mm) | L (mm) | L1 (mm) | L2 (mm) |
| ART.1822 | Straight ball valve for gas M/M, made of brass. | 1/2"x1/2" | 10 | ISO228-1 | 10 | 66.5 | 13.5 | 47 |

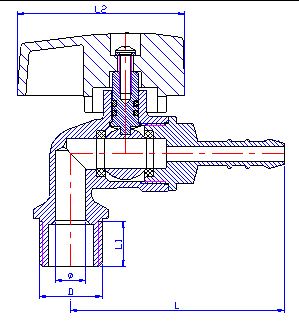

Art.1830:Angle ball bibcock F1/2, with hose union.
| ART.1830 | ||||||||
| ART. NO. | DESCRIPTION | SIZE (D) | PN (bar) | STANDARD OF THREAD | Φ (mm) | L (mm) | L1 (mm) | L2 (mm) |
| ART.1830.009 | Angle ball valve F with hose union for gas, made of brass. | 1/2"x8 | 10 | ISO228-1 | 10 | 71.5 | 17 | 47 |
| ART.1830.014 | 1/2"x13 | 10 | ISO228-1 | 10 | 86.5 | 17 | 47 | |

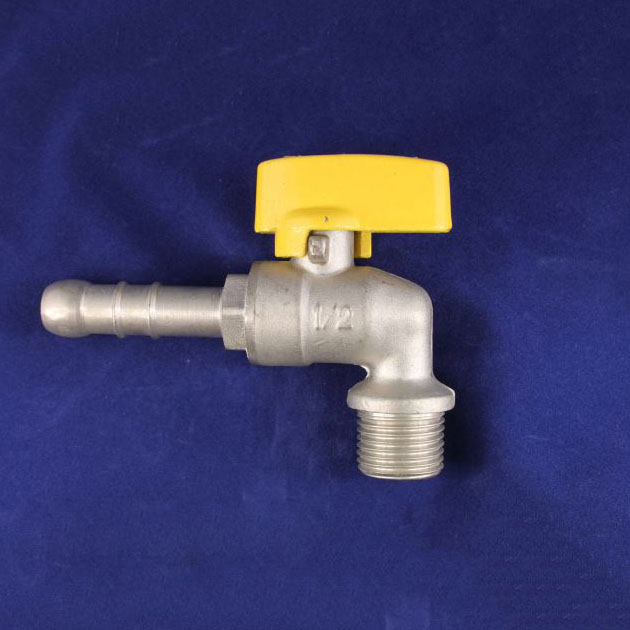

Art.1831:Angle ball bibcock M1/2, with hose union.
| ART.1831 | ||||||||
| ART. NO. | DESCRIPTION | SIZE (D) | PN (bar) | STANDARD OF THREAD | Φ (mm) | L (mm) | L1 (mm) | L2 (mm) |
| ART.1831.009 | Angle ball valve M with hose union for gas, made of brass. | 1/2"x8 | 10 | ISO228-1 | 10 | 71.5 | 13.5 | 47 |
| ART.1831.014 | 1/2"x13 | 10 | ISO228-1 | 10 | 86.5 | 13.5 | 47 | |

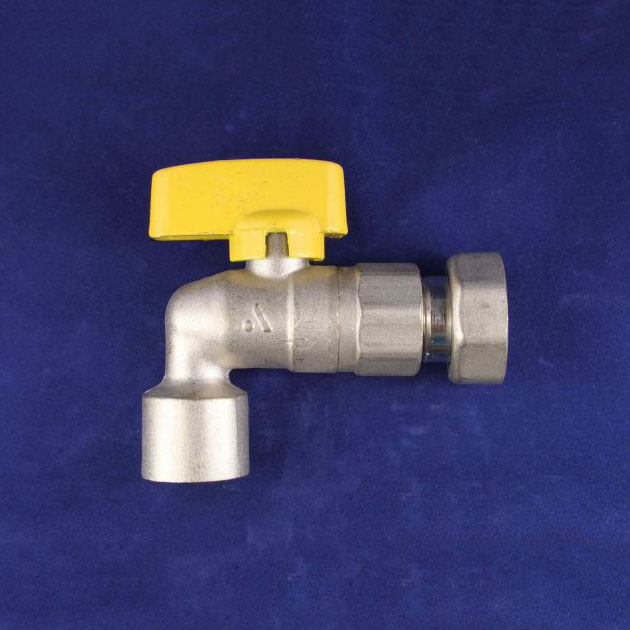

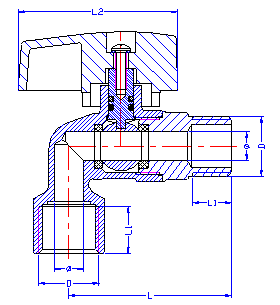

Art.1840: Angle ball bibcock F/F, swivel end, for water heaters.
| ART.1840 | ||||||||
| ART. NO. | DESCRIPTION | SIZE (D) | PN (bar) | STANDARD OF THREAD | Φ (mm) | L (mm) | L1 (mm) | L2 (mm) |
| ART.1831.015 | Angle ball valve F/F, with swivel end, made of brass. | 1/2"x1/2" | 10 | ISO228-1 | 10 | 64 | 17 | 47 |
| ART.1831.014 | 1/2"x3/4" | 10 | ISO228-1 | 10 | 70.4 | 17 | 47 | |

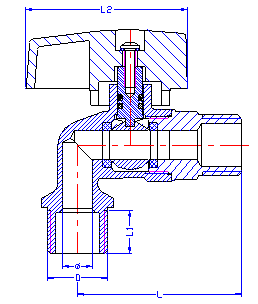

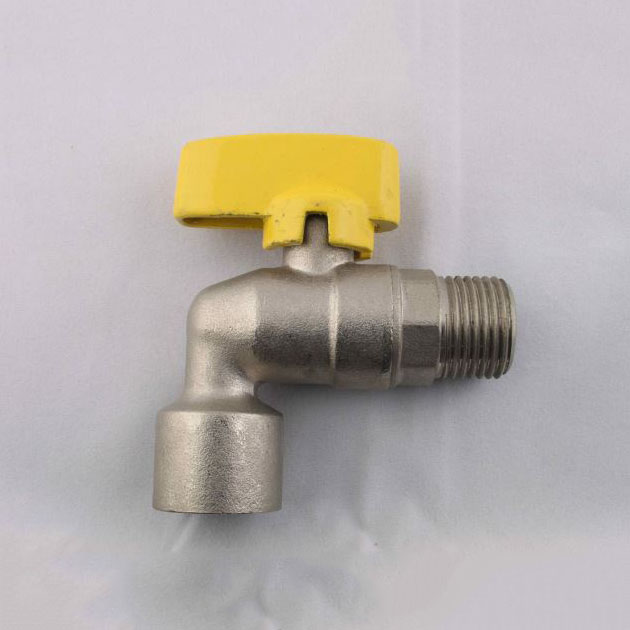

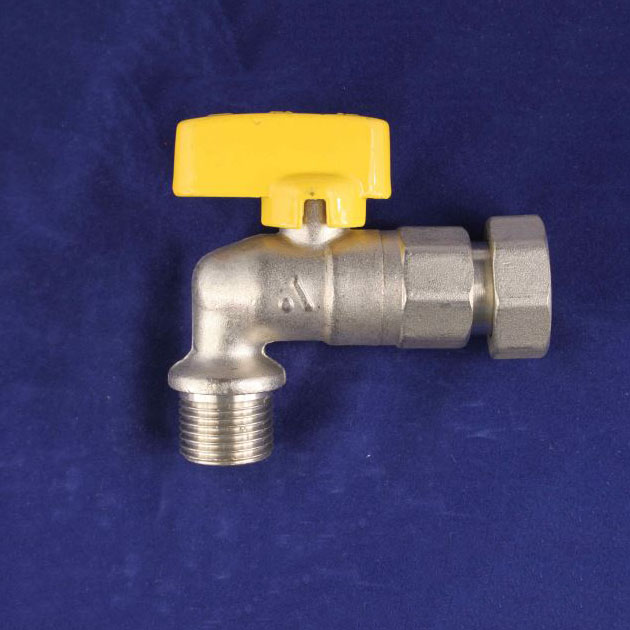

Art.1841: Angle ball bibcock F/M, swivel end, for water heaters.
| ART.1841 | ||||||||
| ART. NO. | DESCRIPTION | SIZE (D) | PN (bar) | STANDARD OF THREAD | Φ (mm) | L (mm) | L1 (mm) | L2 (mm) |
| ART.1841.015 | Angle ball valve M/F, with swivel end, made of brass. | 1/2"x1/2" | 10 | ISO228-1 | 10 | 64 | 17 | 47 |
| ART.1841.020 | 1/2"x3/4" | 10 | ISO228-1 | 10 | 70.4 | 17 | 47 | |

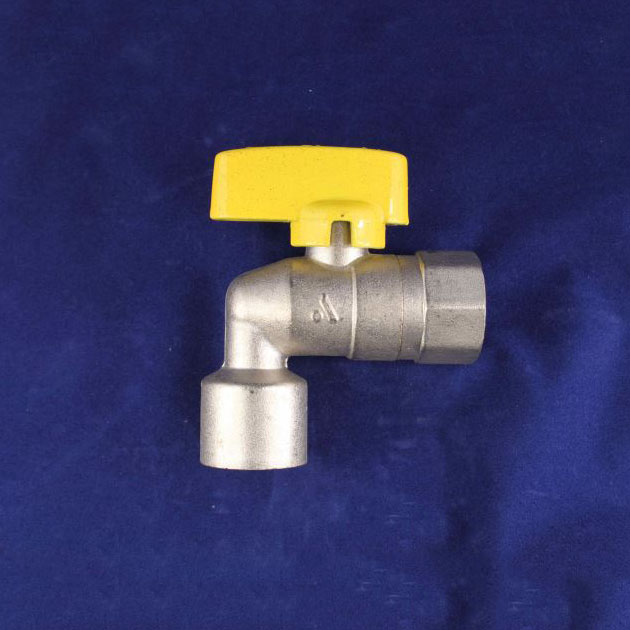

Art.1850: Angle ball bibcock F/F 1/2
| ART.1850 | ||||||||
| ART. NO. | DESCRIPTION | SIZE (D) | PN (bar) | STANDARD OF THREAD | Φ (mm) | L (mm) | L1 (mm) | L2 (mm) |
| ART.1850 | Angle ball valve for gas F/F, made of brass. | 1/2"x1/2" | 10 | ISO228-1 | 10 | 52 | 17 | 47 |
Art.1851: Angle ball bibcock F/M 1/2
| ART.1851 | ||||||||
| ART. NO. | DESCRIPTION | SIZE (D) | PN (bar) | STANDARD OF THREAD | Φ (mm) | L (mm) | L1 (mm) | L2 (mm) |
| ART.1851 | Angle ball valve for gas M/F, made of brass. | 1/2"x1/2" | 10 | ISO228-1 | 10 | 57.5 | 13.5 | 47 |
Art.1852: Angle ball bibcock F/F 1/2
| ART.1852 | ||||||||
| ART. NO. | DESCRIPTION | SIZE (D) | PN (bar) | STANDARD OF THREAD | Φ (mm) | L (mm) | L1 (mm) | L2 (mm) |
| ART.1852 | Angle ball valve for gas M/M, made of brass. | 1/2"x1/2" | 10 | ISO228-1 | 10 | 57.5 | 13.5 | 47 |
